Inserts for injection molding

Inserts for injection molding

Inserts for injection molding

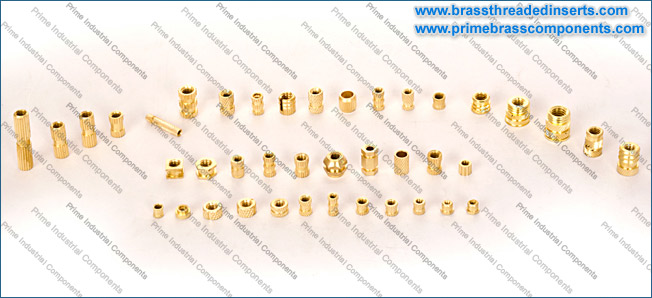

We are a leading Manufacturer, Exporter of Brass Injection Molding Inserts based at India (Jamnagar, Gujarat).
We offer Injection Molding Inserts as per customer designs and samples. Generally these inserts are used in Plastic Moulding, PVC injection Moulding, Rubber molding, Instrumentation, Telecommunications and other Plastic Cases Assembly.

Special Features of Injection Molding Inserts :
Threads as per International Go & Not Go Standards.
Deep Groove for maximum Pull out Resistance.
Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the inserts.
Both blind and through inserts are available.

Knurling Available :
Diamond
Straight
Unidirectional

Injection Molding Inserts Material:-
Free Cutting Brass IS 319 Type (I) or
Free Cutting Brass as per BS 249 Type (I) or
High Grade Free Cutting Brass.
Any Special Brass Material Composition as per customer’s requirement.

Injection Molding Inserts Sizes:-
2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 1/8", 3/4", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 3/4" or as per requirement.

Injection Molding Threads:-
ISO METRIC, BSW, BSP, BSPT, UNC, UNF, NPT, NPS , BA etc.

Injection Molding Inserts Finishing:-
Natural, Nickel Plated, Tin Plated or any coating as per customer’s specification and requirement.
Any kind of special Brass Injection Molding Inserts can be developed and supplied exactly as per customer’s specification.
